Power Requirements | AC: 220-240V 50/60Hz, DC: 24v (2×12V Car Battery) |
MIC Input (Impedance/Gain) | 2kΩ/62dB |
LINE Input (Impedance/Gain) | 20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB |
Distortion | < 0.08% |
Frequency Response | 30Hz – 20kHz (+0,-1dB) |
Tone Controls | Bass : ±12dB at 100Hz, Treble : ± 12dB at 10kHz |
OUTPUT | . |
Line Output HI | 0dBm/+17dBm (775mV/5.5V) |
ECHO/Reverb System | Digital Signal Processing |
Signal to Noise Ratio | >70dB (0dBm, 0.775V) |
Dimensions | W423 × H93 × D302 mm |
Weight | 5.0kg |
Ahuja PMX 1632FX Mixers | 48V Phantom Supply On 4 Channels | AC Operation, With Digital Effects ₹19,075.00

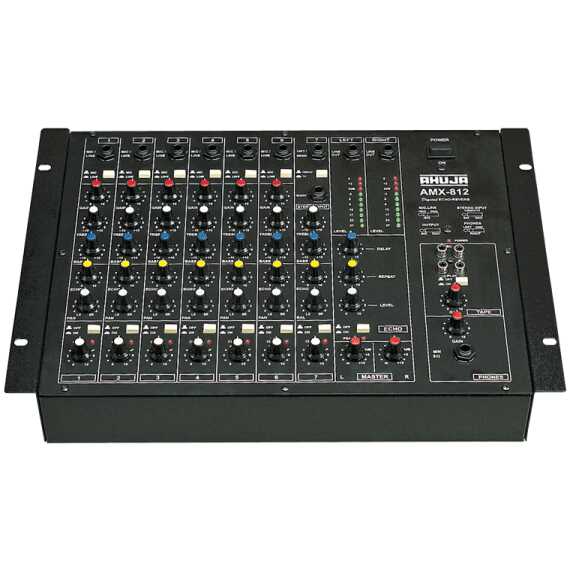

Ahuja MMX 55 Mixers | Ac & 12V Dc Operation ₹2,160.00Ahuja AMX 812 Mixers | 8 Channel | AC & 24V DC Operation
₹10,085.00
- Input Channels: Each Channel has a 1/4” phone jack selectable for either Mic or Line input & accepts both balanced & unbalanced signals.
- Stereo Channel: Independent Stereo input through separate 1/4” unbalanced phone jacks for Left & Right channels.
- Each channel has Gain, Bass, Treble, PAN, ECHO and Level controls with Clip LED indicator.
- Echo section provided with Delay, Repeat & Level controls. Tape section for Record & Playback facility.
Out of stock
Additional information
| Brand | AHUJA |
|---|---|
| CATEGORIES | Medium & Large Mixers |
| CHANNELS | 8 channels |
