Power Output | 415W Max., 325W RMS at 10% THD, 300W RMS at 5% THD, 275W RMS at 2% THD |
Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
Input Channels | 1 × 200mV/470kΩ (unbal.), 2 × 1V/50kΩ (bal.), 1 × 100V Input |
Frequency Response | 50-15,000Hz ±3dB |
Signal to Noise Ratio | 60dB |
Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
Outputs | Loop through 1 × 200mV/600W, 2 ×1V/1kW |
Speaker Outputs | 4Ω, 8Ω, 70V & 100V |
Power Supply | AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) |
Power Consumption | AC: 600VA DC: 7A |
Dimensions | W485 × H142 × D405 mm |
Weight | 20.6kg |

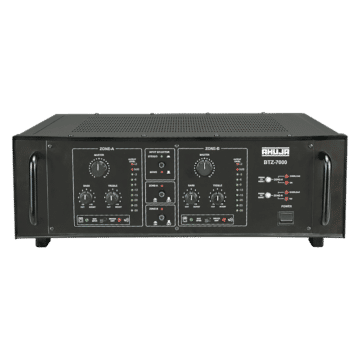

Ahuja BTZ 7000 Power Amplifiers | 700 Watts | 2 ZONE POWER AMPLIFIER ₹39,270.00
Studiomaster DJA 3200 Dual Channel Amplifier (1650+1650watts) ₹40,260.00Ahuja APA 240 Power Amplifiers | 325 Watts | Installation Power Amplifier
₹22,935.00
- High quality booster amplifier in standard 19” rack mountable chassis, suitable for both table-top use and rack mounting. Ideal for fixed installations and a wide variety of PA applications such as in departmental stores, schools, hospitals etc.
- 1x Line 200mV unbalanced input and 2xLine 1V balanced inputs through XLR connector, one 1V input having priority over all other inputs.
- 100V input is provided for connecting another amplifier’s output in long line applications.
- Ground lift switch provided at rear panel which helps reducing the hum that occures due to multiple ground loops in the installations.
- Resettable circuit breaker for protection against overload and short circuit.
- Loop through output for connecting another booster amplifier.
- 19” Rack mountable chassis.
- Instant transfer to DC power (Car Battery) if AC power fails.
Only 1 left in stock
Additional information
| Brand | AHUJA |
|---|---|
| MODEL | Single Zone |
| WATTAGE | 201-500watts |
