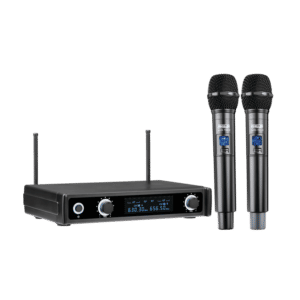

Ahuja AWM 700UHL Microphones | Pa Uhf Wireless Microphone

6,645.00

  • Elegant & affordable high performance dual channel UHF wireless microphone available in different frequencies.
  • Sturdy table-top dual channel receiver with frequency display.
  • Separate volume control for both channels on the front panel of the receiver.
  • One handheld dynamic transmitter and one Bodypack transmitter, each operating on 2 × 1.5V AA pencil cells.
  • Separate balanced audio output from each channel through XLR connector and an unbalanced mixed output through 6.3mm (¼”) jack socket available from the receiver.
  • Receiver operates on 12V DC through an AC adaptor supplied along with the transmitter.
  • Ideal for: PA Applications… Stage & Auditoriums… Stadia… Seminar Halls… Places of Worship… Recreation Centres..

In stock

Ahuja AWM 700UHL Microphones | Pa Uhf Wireless Microphone
6,645.00
Handheld Transmitter.
RF Output Power10mW (Max.)
Modulation ModeFM
Microphone ElementDynamic, Cardioid
Frequency Response50-15,000Hz
Power Requirement3V (2×1.5V AA Pencil Cells)
Current Consumption≤ 150mA
ControlsMic ON/OFF Switch
IndicationChannel Frequency Display
DimensionsØ55 (L 250) mm
Weight220g (w/o battery)
Tie-clip Transmitter.
RF Output Power15mW (Max.)
Modulation ModeFM
Microphone ElementCondenser, Omnidirectional
Frequency Response80-15,000Hz
Power Requirement3V (2×1.5V AA Pencil Cells)
Current Consumption≤ 130mA
ControlsON/OFF Switch, Vol. Control
IndicationRed LED for Transmitter ON, Frequency Display
DimensionsW67 x H32 x D95 mm
Weight60g (w/o battery)
Receiver.
Audio OutputBal. 0dBu, Unbal. -10dBu
S/N Ratio90dB
Distortion≤1%
Frequency Response50-15,000Hz
Power Requirement220V-240V AC 50Hz from AC Adaptor (supplied along with)
ControlsON/OFF Switch, Volume Control for Channel A & B
IndicationsLEDs for RF & Audio Signal, Channel Frequency Display
DimensionsW210 × H42 × D147 mm
Weight405g

Additional information

Brand

AHUJA

FREQUENCY

UHF

MODEL

Hand+Collar Mic
