| Power Rating | 200W RMS |
| Nominal Diameter | 305 mm ( 12 Inch ) |
| Nominal Impedance | 8Ω/16Ω |
| Sensitivity (1W/1m ) | 97dB |
| Magnet Weight | 1.16kg |
| Resonant FrequenceY (Fs) | 50Hz |
| DC resistance (Re) | 6.8Ω/13.0Ω |
| Electromagnetic Q (Qes) | 0.92 |
| Mechanical Q (Qms) | 3.26 |
| Total Q (Qts) | 0.72 |
| Surface Area of Cone (Sd) | 510cm2 |
| Reference Efficiency (ηo) | 3.6% |
| Voice Coil DIAMETER | 2.0” |
| Overhang (Xmax) | 2.5 mm |
| Moving Mass (Mms) | 36.7gm |
| BL Product (BL) | 11.2TM |
| Coil Inductance (Le) | 0.69mH |
| Overall Diameter | 313 mm |
| Depth | 127 mm |
| Baffle Hole Diameter | 285 mm |
| Bolt Mount Diameter (PCD) | 295 mm (8 Bolts) |
| Weight | 4.16kg |
Ahuja UHC 15XT Speakers | 100V | Horn Speakers
₹1,975.00

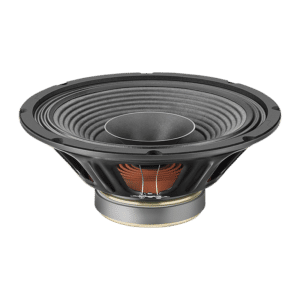

Ahuja SK 12FRZ Speakers | 100 Watts | High Efficiency 30.48mm ( 12 Inch ) Dual Cone Full Range Speake
₹2,560.00

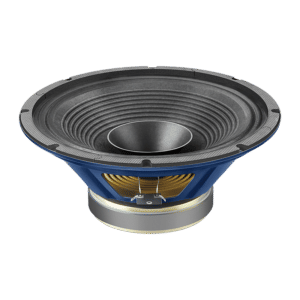

Ahuja DZ12 F200 Speakers | 200 Watts | High Efficiency 30.48cm ( 12 Inch ) Dual Cone Full Range Speaker
₹3,250.00
- 30.48cm ( 12 Inch ) dual cone speaker with wide spectrum frequency response.
- High quality specially designed imported cones and spider for extremely clear, low distortion sound reproduction.
- Impedance of DX12-F200 is 8Ω and DZ12-F200 is 16Ω.
- 5.08cm (2”) CCAW voice coil with high temperature rating for safe, reliable operation.
- Best in the industry – Ahuja 12 inch speaker
In stock
Additional information
| Brand | AHUJA |
|---|---|
| CATEGORIES | Full Range |
| SPEAKER SIZE | 12 Inch |
Ali –
Using it along with as 12 f200. Genuine products. Trusted.
