Power Rating |
1300W RMS/2600W Programme |
|
Nominal Diameter |
457mm (18”) |
|
Nominal Impedance |
4Ω |
|
Sensitivity (1W/1m) |
97dB |
|
Magnet Weight |
5.65kg |
|
Resonant Frequency (Fs) |
37Hz |
|
DC resistance (Re) |
3.6Ω |
|
Electromagnetic Q (Qes) |
0.27 |
|
Mechanical Q (Qms) |
4.33 |
|
Total Q (Qts) |
0.25 |
|
Compliance Equivalent Volume (VAS) |
186 Litr |
|
Surface Area of Cone (Sd) |
1257cm2 |
|
Reference Efficiency (ηo) |
3.5% |
|
Voice Coil |
5.0” |
|
Overhang (Xmax) |
8.0 mm |
|
Moving Mass (Mms) |
212gm |
|
BL Product (BL) |
25.8TM |
|
Coil Inductance (Le) |
1.3mH |
|
Overall Diameter |
475 ×455 mm |
|
Depth |
202 mm |
|
Baffle Hole Diameter |
422 mm |
|
Bolt Mount Diameter (PCD) |
443 mm (8 Bolts) |
|
Weight |
18.80kg |
Ahuja L15 MB400 Speakers | 400 Watts | High Power 38.1cm ( 15 Inch ) Low Frequency Speaker
₹8,050.00
Ahuja APT 025 Speakers | Piezo Tweeters
₹790.00

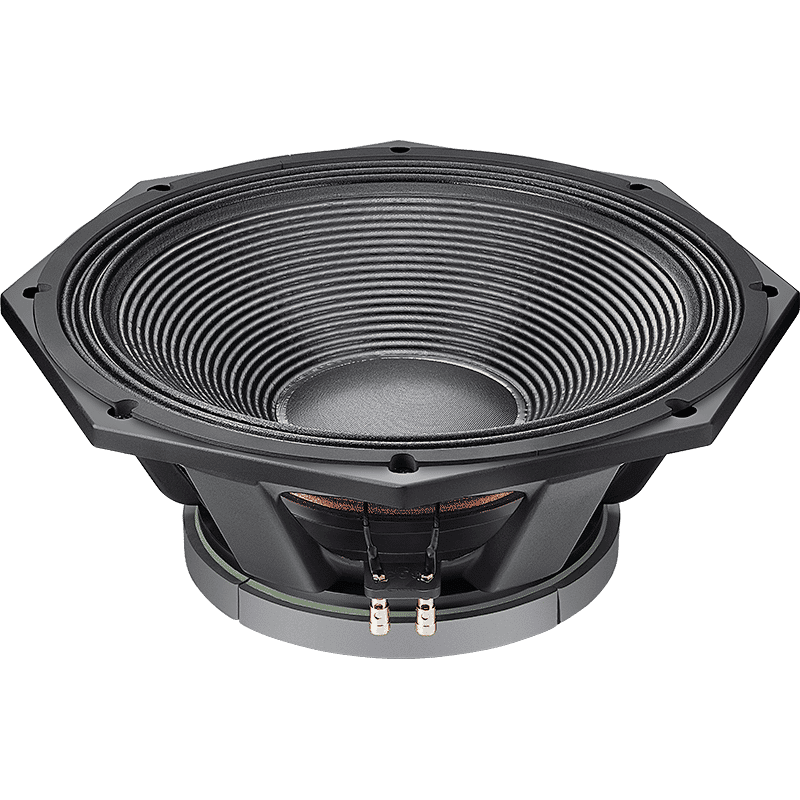

Ahuja L18 SW1300V Speakers | 1300 Watts | Super Power 45.72cm (18â€) Extended Low Frequency Speaker
₹21,590.00
- Introducing an 18” extended low frequency speaker with matchless power and exquisite design.
- Delivers deep, powerful bass in compact bass reflex as well as horn loaded sub-woofer design.
- L18-SW1300V has 4Ω impedance.
- Assembled in a strong and well vented octagonal shaped aluminium die-cast frame.
- Aluminium demodulating ring fitted for enhanced heat dissipation.
- Heavy duty 12.7cm (5”) copper voice coil wound inside/outside on fibreglass former for withstanding high temperatures.
- Triple-rolled cloth surround with deep corrugations and double spider design to give better control of cone excursion.
- Special double treated cone for water splash resistance
- Ideal for usage in a wide variety of professional sub-woofer applications.
Out of stock
Additional information
| Brand | AHUJA |
|---|---|
| CATEGORIES | Sub-Woofer |
| SPEAKER SIZE | 18 Inch |
