| Model | AQUA 14 |
| Nominal Gain (Mic/Line/Stereo Line) | 0dB/40dB/20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB/60dB/40dB |
| Input Levels Sensitivity | |
| Mic (Gain Min/Gain Max) | -10dBu/ -60dBu |
| Line (Gain Min /Gain Max) | +10dBu / -40dBu |
| Stereo Line (Gain Min / Gain Max) | +10dBu / -20dBu |
| Input Impedance | |
| Mic Input | 2KΩ Balanced |
| Line Input | 20KΩ (Balanced) / 10KΩ (Unbalanced) |
| Main Output level (Nominal / Max) | 0dBu (0.775V RMS) / +22dBu (10V RMS) |
| Main Output Impedance | 75Ω |
| Frequency Response | 20Hz to 20KHz (+0/-2 dB) |
| Total Harmonic Distortion | < 0.006% |
| Signal to Noise Ratio | 85dB |
| Equalisation (Mic / Stereo Line) | -±15dB (12KHz HF / 2.5 KHz MF/60Hz LF) / ±15dB (12KHz HF / 2.5 KHz MF/80Hz LF) |
| Effect | 16 Effects, 24-Bit EFX Processor |
| Phantom Supply | +48V |
| Dimensions (W x D x H) mm | 538 x 317 x 134 |
| Net Weight (Kgs.) | 6.5 |
Studiomaster Orb 1222 Mixer (12 Channel) ₹30,720.00

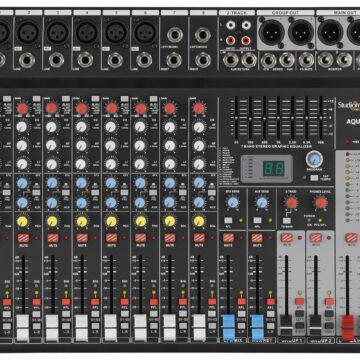

Studiomaster AQUA 8 Mixer (8 Channel) ₹18,240.00Studiomaster AQUA 14 Mixer (14 Channel)
₹26,200.00
- 12 Mic/Line + 2 Stereo
- 2 Aux Sends – Aux + EFX (When internal FX is not used).
- 2 Sub groups with Individual outputs.
- Globally Switched +48V Phantom Power.
- 3 Band EQ per Channel.
- Mic / Line selectivity switch on each mono channel with 20 dB PAD for mic input
- Mix, Group & PFL Routing per channel.
- L/R Pan control & signal LED per channel.
- Headphone and monitor outputs with level control.
- Stereo RCA Playback & record outputs.
- Built in 24-bit Multi-FX processor with Tap Tempo.
- FS mute jack to connect to a standard footswitch to switch On/Off internal EFX.
- Balanced XLR Outputs
In stock
Additional information
| Brand | STUDIOMASTER |
|---|---|
| CATEGORIES | Medium & Large Mixers |
| CHANNELS | 12 channels |
