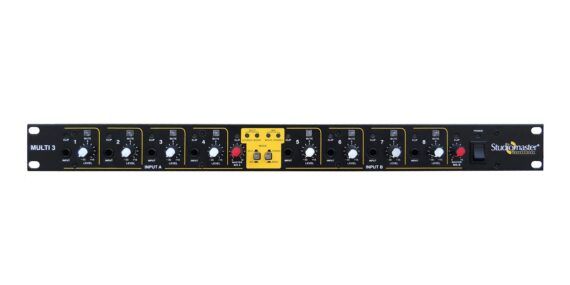

Studiomaster Audio Splitter MULTI 3

10,470.00

  • 10 balanced Inputs & Outputs.
  • 4 modes of operation:
    Stereo Mix – 2 X (4 IN / Mix Out + 4 Individual Channel out).
    Mono Mix – 8 IN / 2 Mix Out + 8 Individual Channel out.
    Stereo Split – 2 IN / 10 Out.
    Mono Split – 1 IN / 10 Out.
  • ¼” Stereo jack inputs on each channel with level control.
  • 15dB gain on each channel.
  • Self illuminated mute switches on each channel.
  • Clip LED for all inputs.

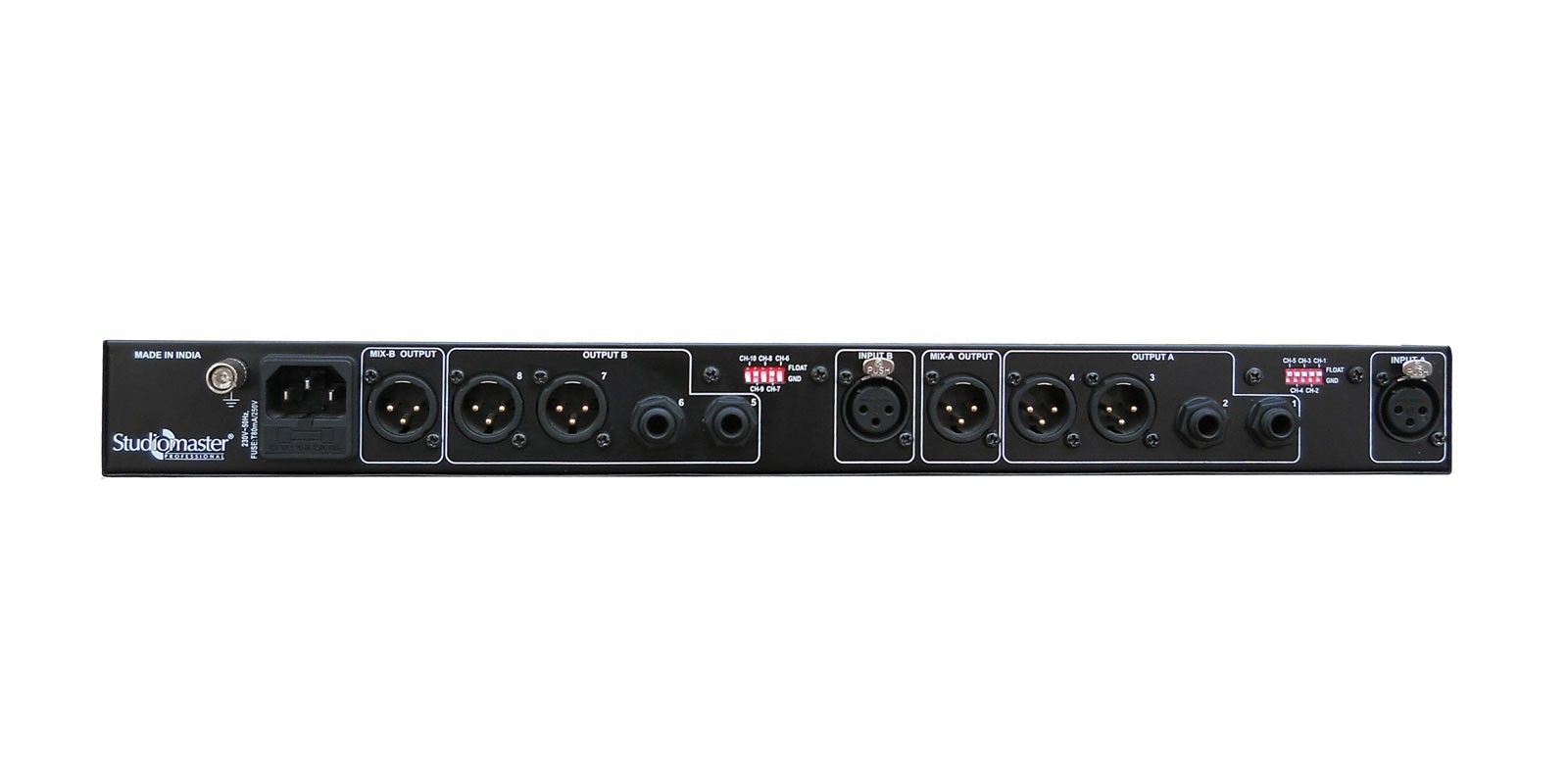

  • Individual Outputs: Four ¼’’ Stereo Jacks & Four XLR.
  • Balanced inputs/ outputs & master control for MIX A & B

In stock

Studiomaster Audio Splitter MULTI 3
10,470.00
ModelMulti 3
Input sensitivity0dBu
Input Impedance> 20 K Ω
Output Impedance< 50 Ω
Maximum Output level+21 dBu
Frequency Response20Hz – 20KHz (+/-0.5 dB)
THD< 0.01 %
Power Supply240V AC/50Hz
Dimensions (W x D x H)mm482 x 120 x 44.2 (1U)
Net Weight (Kgs.)2.1

Additional information

Brand

STUDIOMASTER
