| Model | Pro 12.3 |
| Nominal Gain (Mic/Line/Stereo Line) | 60dB/40dB/20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB/60dB/40dB |
| Input Levels Sensitivity | |
| Mic (Gain Min/Gain Max) | -10dBu / -60dBu |
| Line (Gain Min /Gain Max) | -10dBu / -40dBu |
| Stereo (Gain Min /Gain Max) | +10dBu / -20dBu |
| Input impedence | |
| Mic Input | Typically 1.7K Ω balanced |
| Line input | 17K Ω (Balanced) /8K Ω (Unbalanced) |
| Main Output level (Nominal / Max) | +0dBu (0.775V RMS) / +22dBu (10V RMS) |
| Main Output Impedance | <30 Ω |
| Frequency Response | 20Hz to 20KHz (+0/-1 dB) |
| Total Harmonic Distortion | <0.1 |
| Signal to Noise Ratio | -78 dB |
| Clip indication | 5 dB prior to true clip |
| Equalisation | |
| Phantom Supply | +48V (Ch 7-12) |
| Power Supply | 150V~250V AC/50Hz |
| Dimensions (W x D x H in mm) | 480 x 460 x 128 |
| Net Weight (Kgs.) | 9.2 |

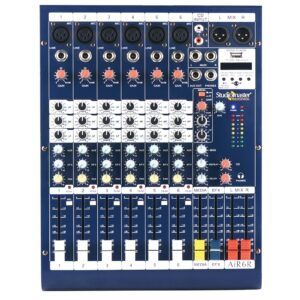

Studiomaster AiR 6R Mixer with Bluetooth, USB & Recorder
₹14,500.00
Studiomaster Orb 1222 Mixer (12 Channel)
₹30,720.00
Studiomaster Pro 12.3 Mixer (12 Channel)
₹29,870.00
- 12 Mic/10 Line + 2 Mono/Stereo
- Balanced Mic/Line inputs.
- Monster (Mono-Stereo) Inputs for full flexibility.
- Gain control with 3 Band EQ & mid-sweep on each channel.
- 4 Aux Send/level AB & Aux 4 AB returns on board.
- L/R Pan/Bal control & Signal/Peak led per channel.
- Master (L-R), Group (G1-G2), PFL Self illuminated switches per channel.
- Aux 1/2 – Pre fader & Aux 3/4 – Post fader.
- Group switchable to Main Mix/Mono or both.
- Headphone & bargraph monitoring by selection of Mix/Group & Mono/PFL.
- Stereo CD In/Record Out & ¼” Headphone out.
- Balanced XLR Master Output.
- Separate Mono Output with Level Control on Balanced XLR connector.
- Switchable +48V Phantom on all channels except first 6 channels.
- 12 Segments LED Meter.
- Operates on wide mains supply variation 150V-240V.
Only 1 left in stock
Additional information
| Brand | STUDIOMASTER |
|---|---|
| CATEGORIES | Premium Mixers |
| CHANNELS | 12 channels |
