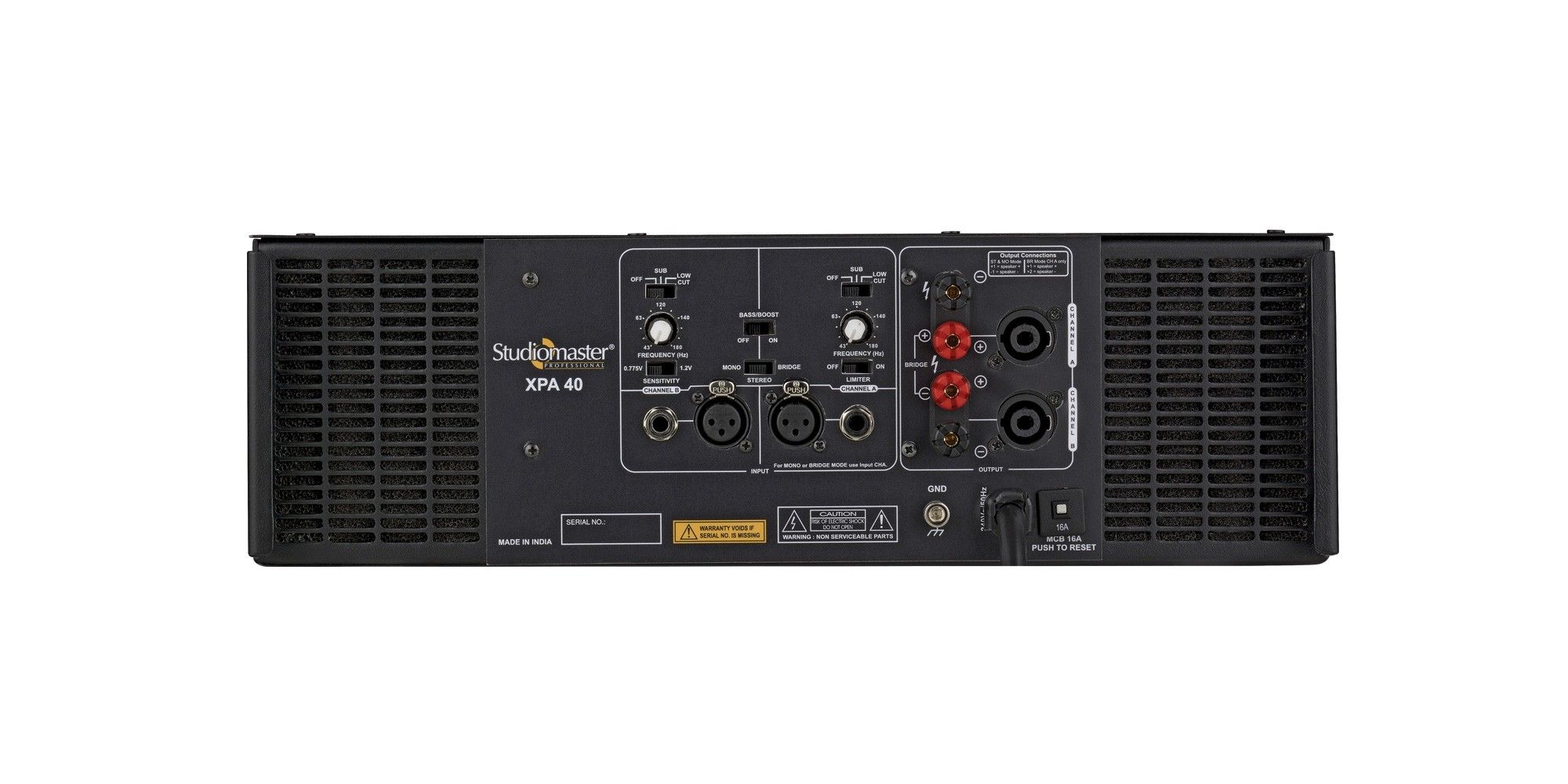

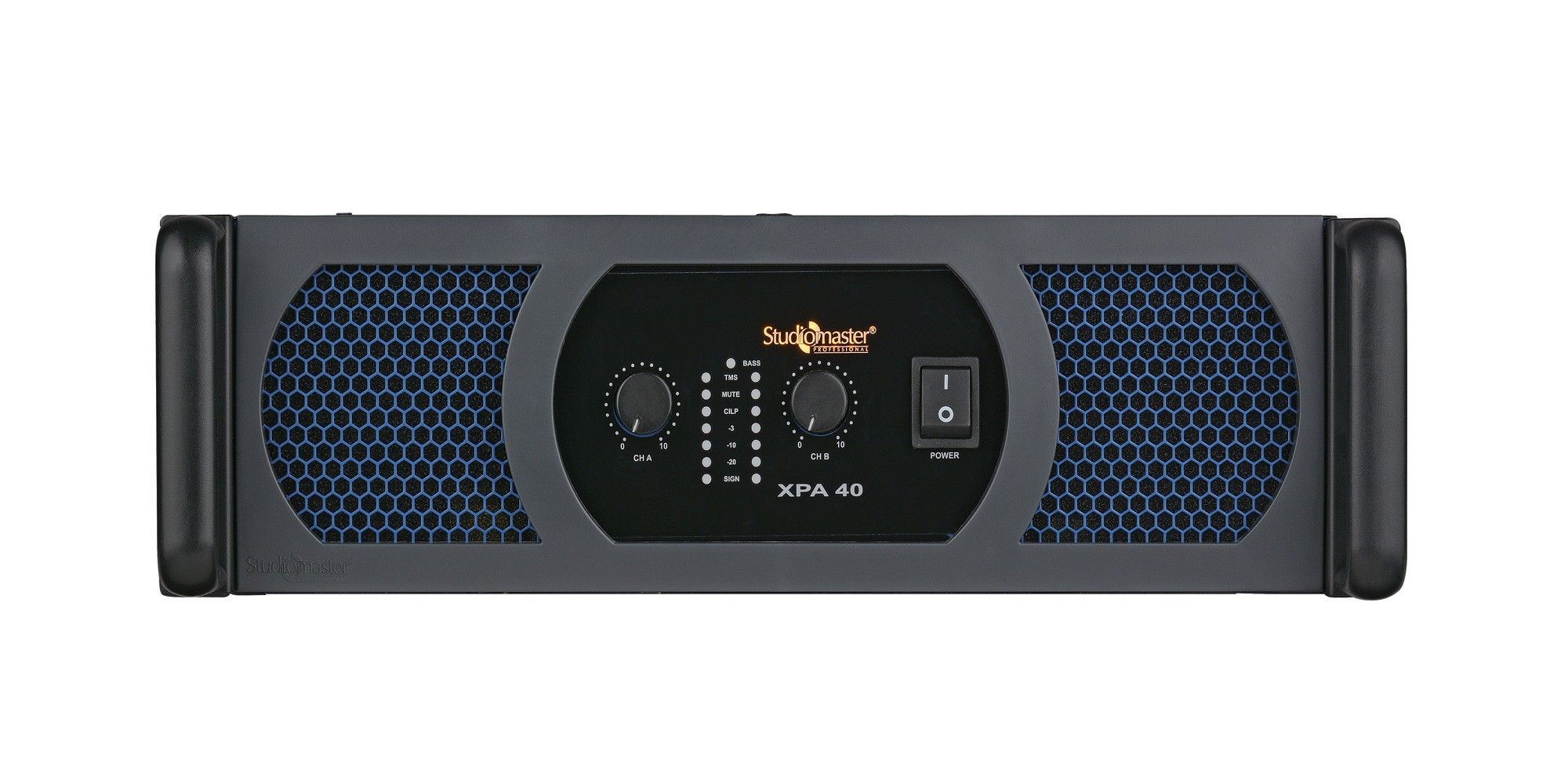

Studiomaster XPA 40 Dual Channel Amplifier (2000+2000watts)


Availability: In Stock
  • Professional-grade high-power stereo amplifier.
  • Built-in crossover and bass boost switch.
  • High-quality balanced XLR and ¼” stereo jack input connectors.
  • 3 switchable operational modes: stereo, mono, and bridge.
  • High-current toroidal transformers with high-endurance cores for greater transient response and low-noise even at 2Ω.
  • Sensitivity (0.775V or 1.2V) selection switch allows flexibility in connection of input sources.
  • The Limiter switch provided protects the Speaker Systems from damage due to distorted input signals.
  • Responsive rotary volume control knobs.
  • Low THD and high damping factor for excellent sound quality.
  • High-quality glass epoxy, double-sided PTH PCBs, and high-grade components ensure reliability even in tough ambient environs.
  • Intelligent cooling using low-noise variable speed fans and direct-mounted over-designed heatsinks.
Availability: 1 In Stock

Only 1 left in stock

Power Output
2 Ω (True RMS),20Hz-20kHz,1% THD 2 x 2000 W

2 Ω (EIA), 1kHz , 1%THD 2 x 3000 W

4 Ω (True RMS),20Hz-20kHz,1% THD 2 x 1400 W

4 Ω (EIA), 1kHz , 1%THD 2 x 2100 W

8 Ω (True RMS),20Hz-20kHz,1% THD 2 x 850 W

8 Ω (EIA), 1kHz , 1%THD 2 x 1200 W

Bridged Mode
4 Ω (True RMS), 20Hz-20kHz, 1% THD 4000 W

8 Ω (True RMS), 20Hz-20kHz, 1% THD 2800 W

Damping factor (8 Ω) >400:1

Frequency Range 20Hz-20kHz (± 0.5dB)

Protection Temperature, DC, RFI, short circuit, soft-start, overload

Input Connector (Per Channel) XLR, jack stereo 6.3mm

Output Connector (Per Channel) Speakon and Binding Post

Dimensions (W x D x H) mm 484 x 575 x 133 (3U)

Net Weight (Kg) 33




Dual Zone
