| Model | AiR 8 |
| Gain (Mic/Line) | 60dB/40dB |
| Input Levels Sensitivity | |
| Mic (Gain Min/Gain Max) | -5dBu / -60dBu |
| Line (Gain Min /Gain Max) | +6dBu / -40dBu |
| Main Output level (Nominal / Max) | +0dBu (0.775V RMS) / +20dBu (7.75V RMS) |
| Frequency Response | 20Hz to 20KHz (+0/-3 dB) |
| Total Harmonic Distortion | < 0.03% |
| Signal to Noise Ratio | -85dB |
| Clip indication | 4 dB prior to true clip |
| Equalisation (Treble/Mid/Bass) | ±15dB @ 12KHz/2.5KHz/80Hz |
| EFX | Delay with repeat |
| Power Supply | AC 240 V / 50Hz |
| Dimensions (W x D x H in mm) | 305 x 335 x 115 |
| Net Weight (Kgs.) | 3.8 |

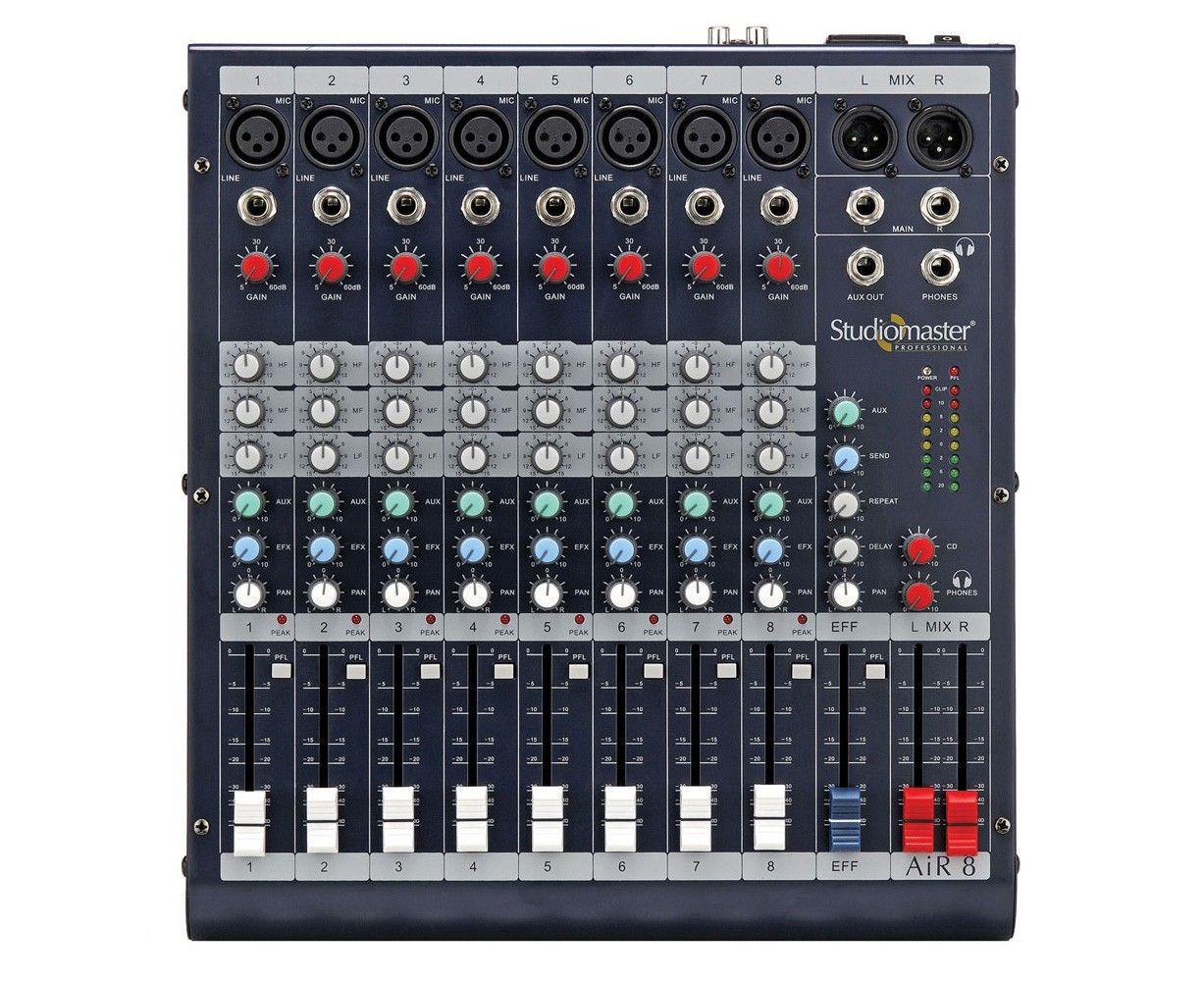

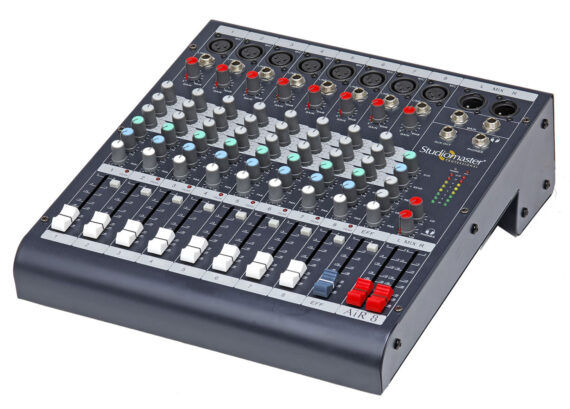

Studiomaster AiR 8 Mixer (8 Channel)
₹15,420.00
- 8 Mic / Line
- 3 Band EQ per channel
- 1 Aux send.
- PFL (Cue) Switch with individual channel control
- L/R pan pot and clip LED per channel.
- Stereo RCA CD input with Control.
- Delay EFX on board & FX send per channel.
- 8 Segments L/R LED meter for master level.
- Headphone output with level control
- Balanced XLR & ¼” Jack Master Output.
In stock
Additional information
| Brand | STUDIOMASTER |
|---|---|
| CATEGORIES | Medium & Large Mixers |
| CHANNELS | 8 channels |
